Sunday 24 May 2015

SECURITY FENCED BARBED WIRE.

Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.
Material for Razor Barbed Wire Fencing: Galvanized blade, stainless steel blade.
Features: Compact and rational structure, high safety factor, for the protection of prison and key project.

Technical Note: Razor barbed wire fencing can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.
In order to install a razor concertina fencing needs razor barbed wire and other items. There is a fencing example:
  • Concertina Barbed Wire: 750mm Dia.
  • Barbed Wire
  • Fabric: 3.76/4.88mm, 3m high, mesh 50mm × 50mm coated.
  • Brace Rail Pipe; 89.9mm, 4m high length coated epoxy green.
  • Line post: hollow section 100 × 100 × 4 × 3000mm with base Plate and top Cover (post cap) coated.
  • Double arm 50 × 50 × 5mm each 500mm long with 6 notches (epoxy angle plated).
  • Tie Wire: 2.5mm/3.76 PVC Coated.
  • Base Plate 300 × 300 × 6mm with Epoxy Paint Finish.
  • Slats

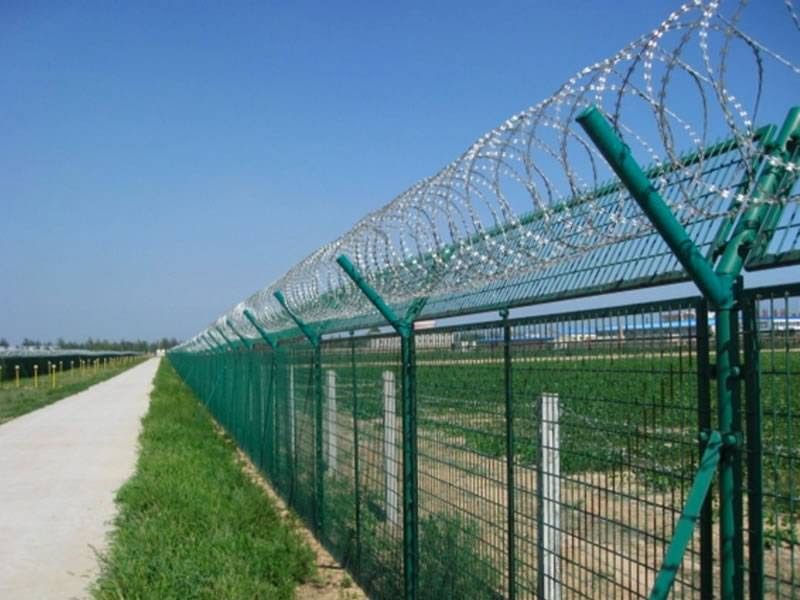

Razor Barbed Wire Fencing

Razor Barbed Wire Fencing

Razor Wire Mesh Fencing

razor wire mesh fencing

Mobile Security Barriers( Rapid Deployment of High Density Razor Wire)
Mobile Security Barriers Rapid Deployment of High Density Razor Wire
1. The system is designed to provide rapid protection - the 75-1000 meter barriers of barbed tape/razor wire coils can be deployed in seconds.
2. Barriers are fully re-usable.
3. Equipment is supplied to uplift and recompress the barrier into modules, simple to handle and compact to store.
4. A single carrier unit can be quickly refilled to drop many miles of barrier in a short space of time.
5. Systems can be tailored to meet customers exact requirements.
6. No Police or Military Organization can afford to be without this valuable tool.

Razor Wire
Outside Diameter No.of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type
